…we reach the atomic limits of device scaling.
At ~4nm pitch we run out of room “at the bottom,” after patterning costs explode at 45nm pitch.
Lead bongo player of physics Richard Feynman famously said, “There’s plenty of room at the bottom,” and in 1959 when the IC was invented a semiconductor device was composed of billions of atoms so it seemed that it would always be so. Today, however, we can see the atomic limits of miniaturization on the horizon, and we can start to imagine the smallest possible functioning electronic device.
Today’s leading edge ICs are made using “22nm node” fab technology where the smallest lithographically defined structure—likely a transistor gate—is just 22nm across. However, the pitch between such transistors is ~120nm, because we are already dealing with the resolution limits of lithography using water-immersion 193nm with off-axis-illumination through phase-shift masks. Even if a “next-generation” lithography (NGL) technology were proven cost-effective in manufacturing— perhaps EbDW for guidelines combined with DSA for feature fill and EUV for trim—we still must control individual atoms.
We may have confidence in shrinking to 62nm pitch for a 4x increase in density. We may even be optimistic that we can shrink further to a 41nm pitch for a ~10x increase in density…but that’s nearing the atomic limits of variability. There are many hypothesized nanoscale devices which could succeed silicon CMOS in IC, but one commonality of all devices is that they will have to be electrically connected. Therefore, we can simplify our consideration of the atomic limits of device scaling by focusing on the smallest possible interconnect.

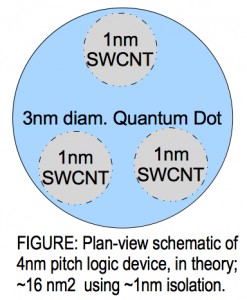

Our magical device will have to be electrically isolated and so some manner of dielectric will be needed with some minimal number of atoms. Atomic Layer Deposition (ALD) of alumina has been proven in very tight geometries, and 3 atomic layers of alumina takes up ~1nm so we can assume that spacing between devices. A rectangular array would then result in ~16nm2 as the smallest possible 3-terminal device that can be built on the surface of planet Earth.
Note that a SWCNT of ~1 nm diameter theoretically could carry ~25 microAmps across an estimated 5kOhm internal resistance [(ECS Transactions, 3 (2) 441-448 (2006)]. I will leave it to someone with a stronger device physics background to comment as to the suitability of such contacts for useful circuitry. However, from a manufacturing perspective, to ensure electrical contacts to billions of nanoscale devices we generally use redundant structures, and doubling the number of SWCNT contacts to a 3-terminal device would call for ~8 nm pitch.
However, before we reach the 4-8nm pitch theoretical limits of device scaling, we will reach relative economic limits of scaling just one device feature such as a transistor gate. Recall that there are just 22 silicon atoms (assuming silicon crystal lattice spacing of ~0.3nm) across a ~7nm line, and every atom counts in controlling device parameters. Imec’s Aaron Thean recently provided an excellent overview of scaled finFET technologies, and though the work does not look at packing density we can draw some general trends. If we assume 41nm pitch and double fins with 20nm gate length then each device would use ~1,600 nm2.
Where are we now? Let us consider traditional 6-transistor (6T) SRAM cells built using “22nm node” logic process flows to have minimal area of ~100,000 nm2 or ~16,000 nm2 per transistor. At IEDM2013 (9.1), TSMC announced a “16nm node” 6T SRAM with ~70,000 nm2 area or ~10,000 nm2 per transistor.
IBM recently announced that 6 parallel 30nm long SWCNT spaced 8nm apart will be developed as transistors for ICs by the year 2020. Such an array would use up ~1440 nm2 of area. Again, this is at best another 10x in density compared to today’s “22nm node” ICs.
Imec held another Technology Forum at SEMICON/West this year, in which Wilfried Vandervorst presented an overview of innovations in metrology needed to continue shrinking device dimensions. His work with Scanning Spreading Resistance Microscopy (SSRM) is extraordinary, showing ability to resolve 1-2nm conductivity variations in memory cell material. Working with Resistive RAM (ReRAM) material using a 2nm diameter probe tip as the top contact, researchers were able to show switching of the material only underneath the contact…thus proving that a stable ReRAM cell can be made with that diameter. If we use cross-bar architectures of that material we’d be at a 4nm pitch for memory, coincidentally the same pitch needed for the densest array of 3-terminal logic components.
| IC SCALING LIMITATION |
Pitch / “Node” |
Transistor nm2 |
Scale from 22nm |
| 193nm lithography double-patterning |
124nm / “22nm” |
16000 |
1 |
| Atomic variability (economics) |
41nm / “7nm” |
1600 |
10 |
| Perfect atoms (physics) |
4nm |
16 |
1000 |
The refreshing aspect of this interconnect analysis is that it just doesn’t matter what magical switch you imagine replacing CMOS. No matter whether you imagine quantum-dots or molecular memories as circuit elements, you have to somehow connect them together.
Note also that moving to 3D IC designs does not fundamentally change the economic limits of scaling, nor does it alter the interconnect challenge. 3D ICs will certainly allow for greater number of devices to be packed into a given volume, so mobile applications will likely continue to pull for 3D integration. However, the cost/transistor is limited by 2D process technologies that have evolved over 60 years to provide maximum efficiency. Stacking IC layers will allow for faster and smaller devices, though generally only with greater costs.
Atoms don’t scale.
Past posts in the blog series:
Moore’s Law is Dead – (Part 1) What defines the end, and
Moore’s Law is Dead – (Part 2) When we reach economic limits.
The final post in this blog series (but not the blog) will discuss:
Moore’s Law is Dead – (Part 4) Why we say long live “Moore’s Law”!
—E.K.
